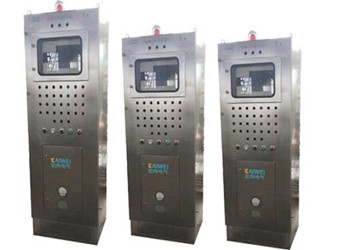

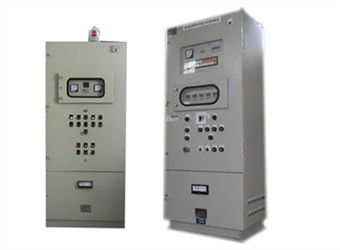

Flameproof control cabinet
功能特點
規格參數
-
There are two types of main and auxiliary cabinets: left and right, upper and lower. The main cabinet is a positive pressure sealed chamber. The front and rear doors are opened, and the front side is equipped with an observation window. The main cabinet is mainly equipped with a positive pressure air passage control system.
It has the function of automatic air exchange before starting, ventilation delay, automatic air supply, and automatic control of positive pressure range.
The operation is simple and convenient to use, and the "positive pressure operation" state is entered after the ventilation is completed.
It has safety interlock protection functions such as positive pressure protection (upper and lower limit), sound and light alarm, positive pressure lower limit automatic power off, door open power failure, emergency manual power off and so on.
Cable compression type introduction device.
Various instruments, inverters, PLCs, soft starters, touch screens and computer control systems can be installed inside the product to achieve local and remote control.
-
額定電壓：220V、380V
標稱功率：
防爆等級：ExdⅡBT1-4
輸出口最高溫度：
控溫方式：Automatic temperature control
控溫精度：±1℃
功率范圍：
功率誤差范圍：
介電強度：
發熱特性：
功率調整系數：
耐溫等級：
防爆等級：
是否阻燃：
環境溫度：
使用場所：
結構型式：
